Standards

Wi-Fi 4

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

N450

2.4 GHz: 450 Mbps (802.11n)

WiFi Range

2 Bedroom Houses

3× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

Legacy

Working Modes

Router Mode

Access Point Mode

Range Extender Mode

HARDWARE

Processor

Single-Core CPU

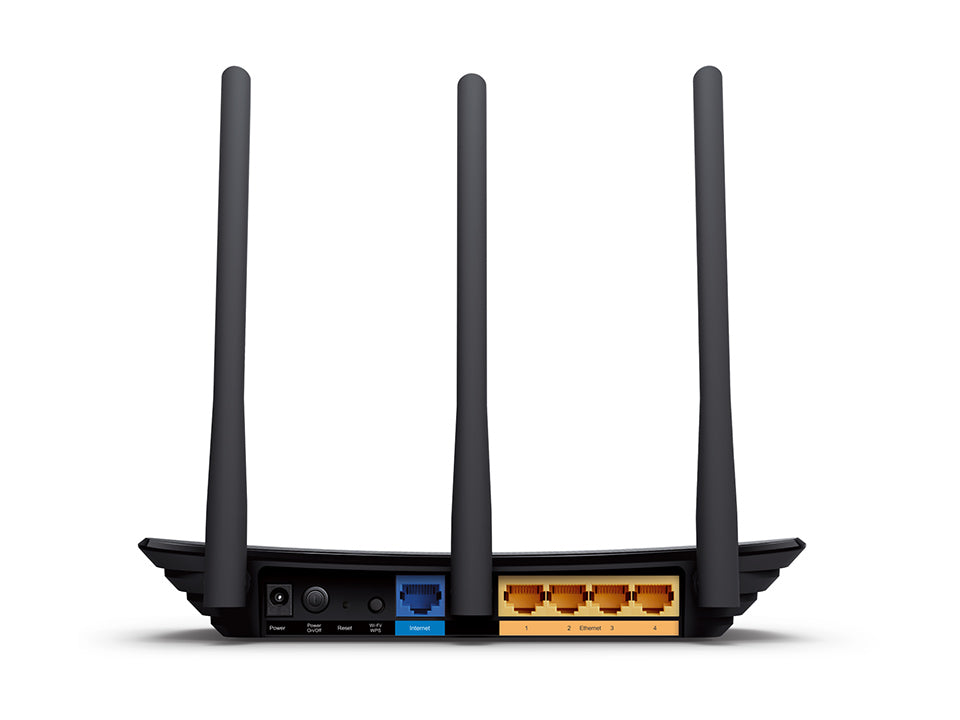

Ethernet Ports

1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

Botones

WPS/Wi-Fi Button

Power On/Off Button

Reset Button

Power

9 V ⎓ 0.6 A

SEGURIDAD

WiFi Encryption

WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network

1× 2.4 GHz Guest Network

SOFTWARE

Protocols

IPv4

IPv6

Parental Controls

URL Filtering

Time Controls

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

QoS by Device

NAT Forwarding

VIrtual Server

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV

IGMP Proxy

IGMP Snooping

DHCP

Address Reservation

DHCP Client List

Server

DDNS

NO-IP

Comex

DynDNS

Management

Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H)

9.1 × 5.7 × 1.4 in

(230 × 144 × 35mm)

Package Contents

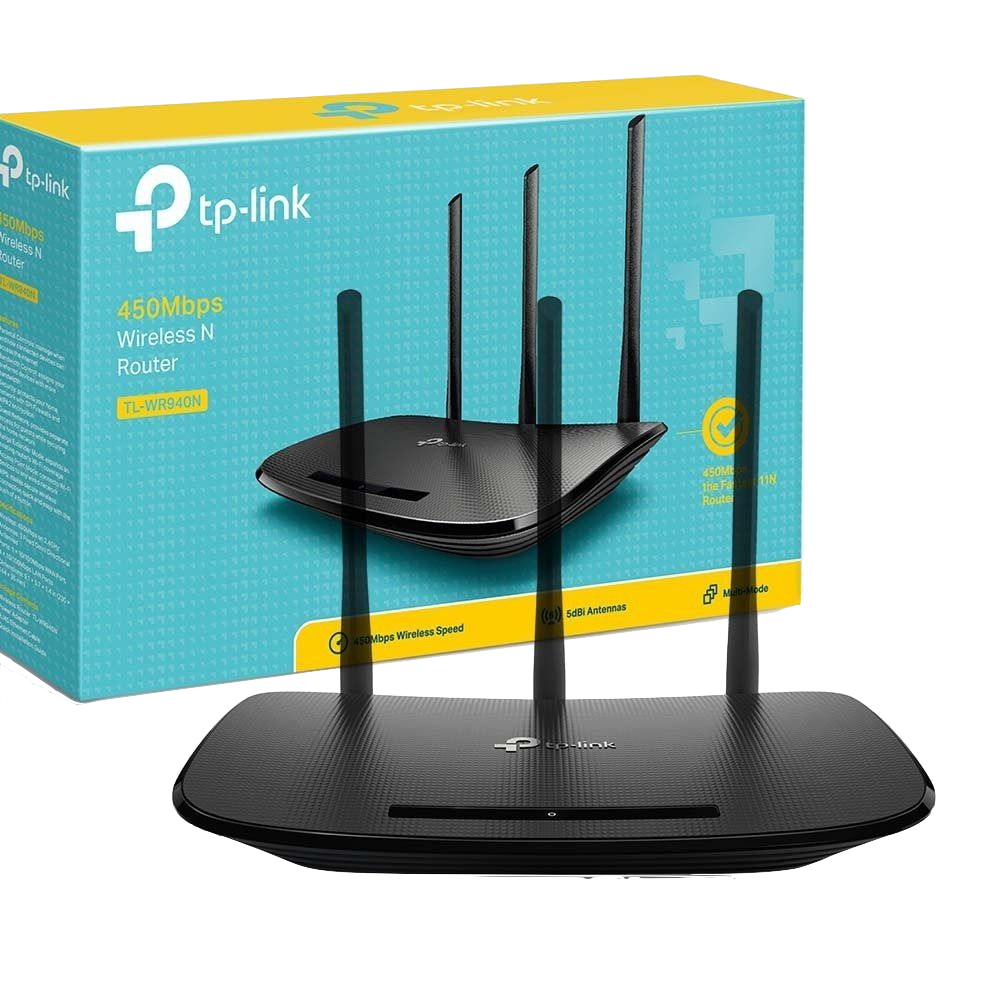

Wi-Fi Router TL-WR940N

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power

CE:

<20dBm(2.4GHz)

FCC:

<30dBm

WiFi Reception Sensitivity

450M: -68dBm@10% PER

216M: -70dBm@10% PER

130M: -78dBm@10% PER

54M: -74dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -93dBm@8% PER
